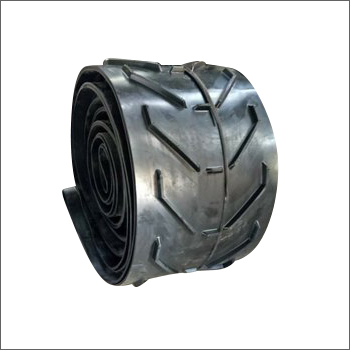

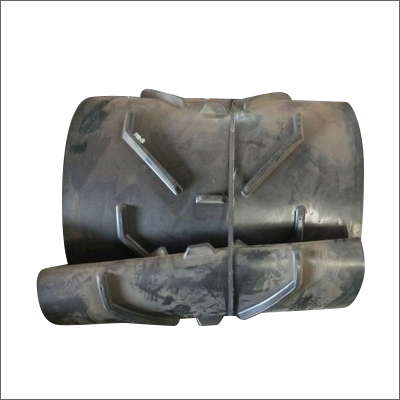

Chevron Conveyor Belt

Price 900 INR/ Meter

Get a Price/Quote

Chevron Conveyor Belt Specification

Tolerance
5 mm (width, length)

Product Type
Chevron Conveyor Belt

Style
Chevron pattern

Material
Rubber (synthetic or blended), Fabric/EP/NN carcass

Part Type
Conveyor belt

Usage & Applications
Bulk material handling, inclined conveyor systems, mining, agriculture, construction

Width
400 mm to 2200 mm

Thickness
6 mm to 25 mm

Components
Chevron patterned top cover, fabric ply carcass, rubber bottom cover

Natural Rubber
Contains rubber compound (sometimes with natural rubber blend)

Density
1.35 Gram per cubic centimeter(g/cm3)

Length
10 m to 200 m; customizable

Tensile Strength
Rated 10-24 MPa (varies with grade)

Thermal Conductivity
Low (rubber is a thermal insulator)

Water Absorption
< 2% (by weight)

Color
Black

Rubber Type
SBR/NBR/Natural blends (as per requirement)

Flame Resistance Level
Available on request for special applications

Temperature Resistance
-30C to +80C (higher on request)

Feature
Anti-slip, high load capacity, increased grip, resistant to abrasion

Resistance level
Oil, heat, abrasion, and chemical resistant grades available

Size
Customizable as per requirement

Weight
Depends on width, thickness & length

Diameter
Varies as per roll length and width

Surface Finish
Textured/Chevron profile

Hardness
60 5 Shore A

Pattern Height
8 mm to 32 mm

Working Life
5-10 years (with proper usage and maintenance)

Cover Thickness (Top/Bottom)
3 mm/1.5 mm or as specified

Adhesion Strength
Minimum 4.5 N/mm (between plies)

Minimum Pulley Diameter
250 mm upwards, depending on ply & thickness

Elongation at Break
12-18%

Edge Type
Cut edge or moulded edge

Number of Plies
2, 3, 4, or custom

Breaking Elongation
< 2.5%

Chevron Conveyor Belt Trade Information

Minimum Order Quantity
10 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Chevron Conveyor Belt

Chevron Conveyor Belt that our well-established entity proposes does not get damaged easily for years due to its tensile strength of 15 mpa and great flexibility. The conveyor belt is manufactured using superior grade rubber material with approved vulcanization technology in complete line with industry standards. Suitable for RMC plant and other industrial applications, Chevron Conveyor Belt can be availed in width from 500 to 1000mm, and thickness from 11 to 15mm at compromising prices.

Technical Specification

Material	Rubber
Belt Width	500 - 1000 mm
Belt Thickness	11 -15 mm
Tensile Strength	15 mpa

Optimized Design for Inclined Conveying

The chevron-patterned top cover is specifically engineered to improve material transport on steep inclines, offering superior grip and reducing the risk of material rollback. With pattern heights from 8 mm to 32 mm and custom options available, Chevron Conveyor Belts are ideal for handling loose bulk materials in challenging industrial settings.

Custom-Built for Versatile Applications

With customizable width, thickness, and ply configurations, these belts are tailored to fit unique conveyor requirements. Whether you require oil-resistant, heat-resistant, or flame-resistant properties, our belts offer solutions compatible with a variety of operating conditions in sectors such as mining, agriculture, and construction.

FAQ's of Chevron Conveyor Belt:

Q: How does the chevron pattern improve conveyor belt performance on inclines?

A: The chevron pattern enhances grip and reduces material slippage on slopes, making it highly effective for transporting bulk materials upwards. The raised profile channels help stabilize materials even on steep inclines.

Q: What are the customization options available for Chevron Conveyor Belts?

A: You can customize the number of plies (2, 3, 4, or more), belt width (400 mm to 2200 mm), thickness, pattern height (8 mm to 32 mm), edge type (cut or moulded), cover thickness, and the rubber compound blend (SBR, NBR, or natural blends) to suit specific operational requirements.

Q: When should I choose cut edge versus moulded edge for my conveyor belt?

A: Cut edge belts are suitable for general industrial use and normal load conditions, whereas moulded edge belts provide enhanced durability and better protection against edge wear, making them preferable for heavy-duty or high-abrasion environments.

Q: Where can Chevron Conveyor Belts be used?

A: These belts are widely used in industries such as mining, agriculture, construction, and bulk material handling. They excel in inclined conveyor systems where increased grip and anti-slip properties are vital.

Q: What is the process for ordering a custom size Chevron Conveyor Belt?

A: To order a custom size, provide specifications such as required width, thickness, length, pattern height, number of plies, edge type, and any special resistance properties. The manufacturer will tailor production to your conveyor's exact needs.

Q: How long can I expect a Chevron Conveyor Belt to last under proper conditions?

A: With correct usage and regular maintenance, Chevron Conveyor Belts typically offer a working life of 5 to 10 years, depending on the load, material type, environment, and operational practices.

Q: What are the main benefits of using a Chevron Conveyor Belt?

A: Chevron Conveyor Belts provide excellent grip on inclines, help prevent material rollback, offer high load capacity, and are resistant to abrasion, heat, oil, and chemicals. These qualities ensure improved operational efficiency and reduced downtime in demanding applications.
